Available with V40 Rim and V50/V51 Surface Vertical Rod Exit Devices

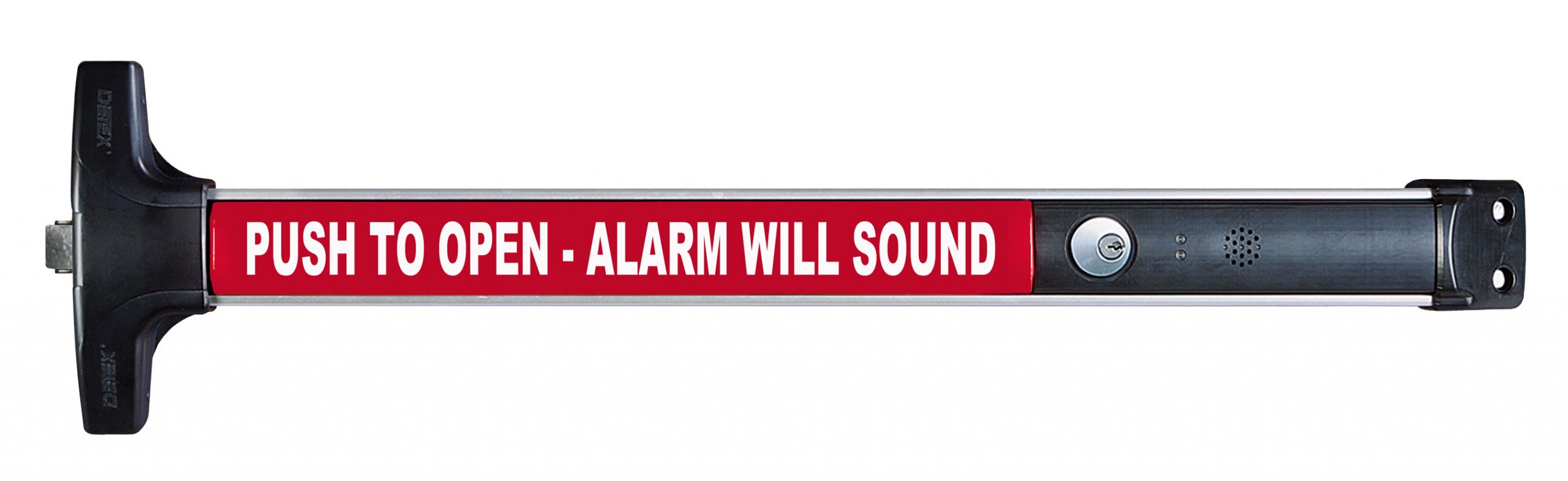

Exit Alarm (EA)
The EA device option is designed for doors that require a hardwired, alarmed panic device with remote signal and bypass. When the alarm sounds a remote signal can be sent to turn on a remote horn, strobe or other security device. The alarm can also be bypassed using a remote button, keypad, card reader or other access control device. The alarm, with approximately 100dB will sound when someone attempts to exit, alerting management that an unauthorized exit has occurred. With electric switching that monitors the pushpad, the EA provides a high level of security while also meeting all life safety concerns.
Features
- Visual and audible arming indicators
- 120V to 12VAC Transformer and 9V battery backup
- Stainless steel, 3/4″ deadlocking Pullman type latchbolt
- Single mortise cylinder provides arming and dogging
- Armed and disarmed status indicator
- Field sizeable
- 1/8 turn cylinder dogging
Benefits
- Priced to be the best value for durable and attractive loss prevention panic hardware
- Fits almost any door in any decor
- Fast and easy installation saves time and money
- Reduces employee and customer theft
- Angled end cap deflects damage away from device
- Controls foot traffic, deters unauthorized exits, prevents loss and meets building code requirements
Videos
FAQ
- How do I change the battery?
- How to order parts
- One or both LEDs are constantly on and the unit will not arm
- When the unit is armed, LEDs work, but the device doesn’t beep after the green LED goes off
- Why can’t I remove my key when the bar is disarmed?
- Why does the AC powered unit give a low battery indication?
- Why is the LED not blinking?
- Why is there no LED activity when key is turned to armed position?
- Why isn’t the status indicator working?
