Trims
Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. Detex uses the BHMA functions/descriptions for all trims.
Wide Plates & Pull Trims
Narrow Plates & Pull Trims
Narrow Lever Trims
Electric Unlock Trims
Wide Plates & Pull Trims

01P

03P

02WP

03WS

02A
03A
Trim | Function | Device Compatibility |
---|---|---|
01P | Cover plate | V40, V50 |
03P | Key retracts latch | V40, V50 |
02WP | Dummy pull (wire) | V40, V50 |
03WS | Key retracts latch | V40, V50 |
02A | Dummy pull | V40, V50 |
03A | Key retracts latch | V40, V50 |
Narrow Plates & Pull Trims

01PN

03PN

03CN

02AN
03AN
Trim | Function | Device Compatibility |
---|---|---|
01PN | Cover plate | V40, V50 |
03PN | Key retracts latch | V40, V50 |

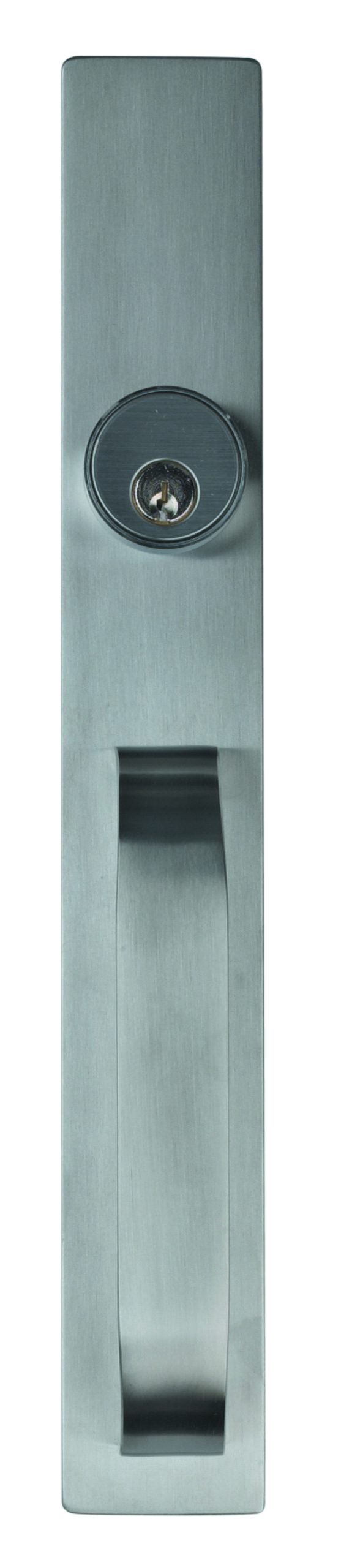

03CN | Key retracts latch | V40, V50 |
02AN | Dummy pull | V40, V50 |
03AN | Key retracts latch | V40, V50 |
Narrow Lever Trims

02BN
14BN

08BN
09BN

02D2W
14D2W

08D2W
09D2W
Trim | Function | Device Compatibility |
---|---|---|

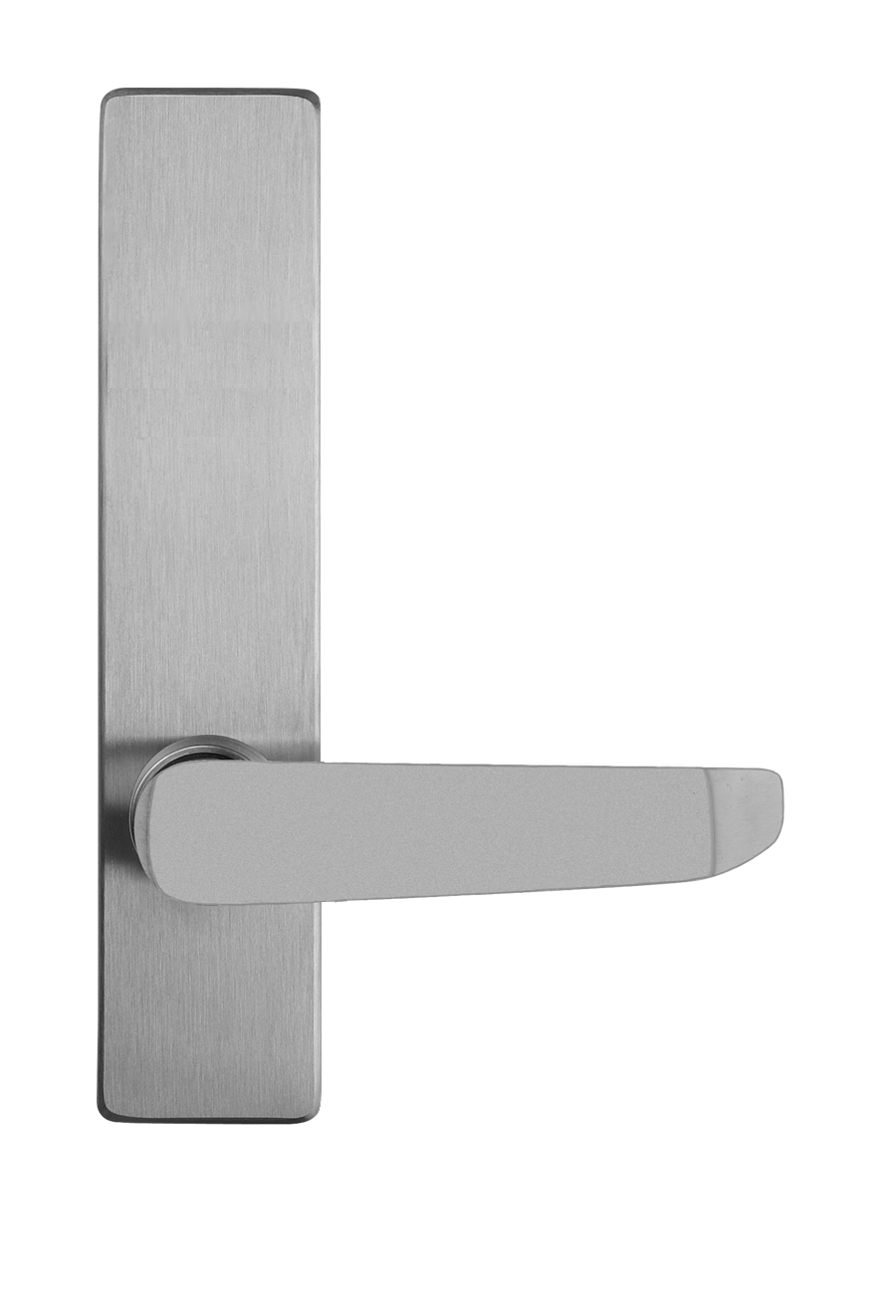

02BN | Dummy lever | V40, V50 |

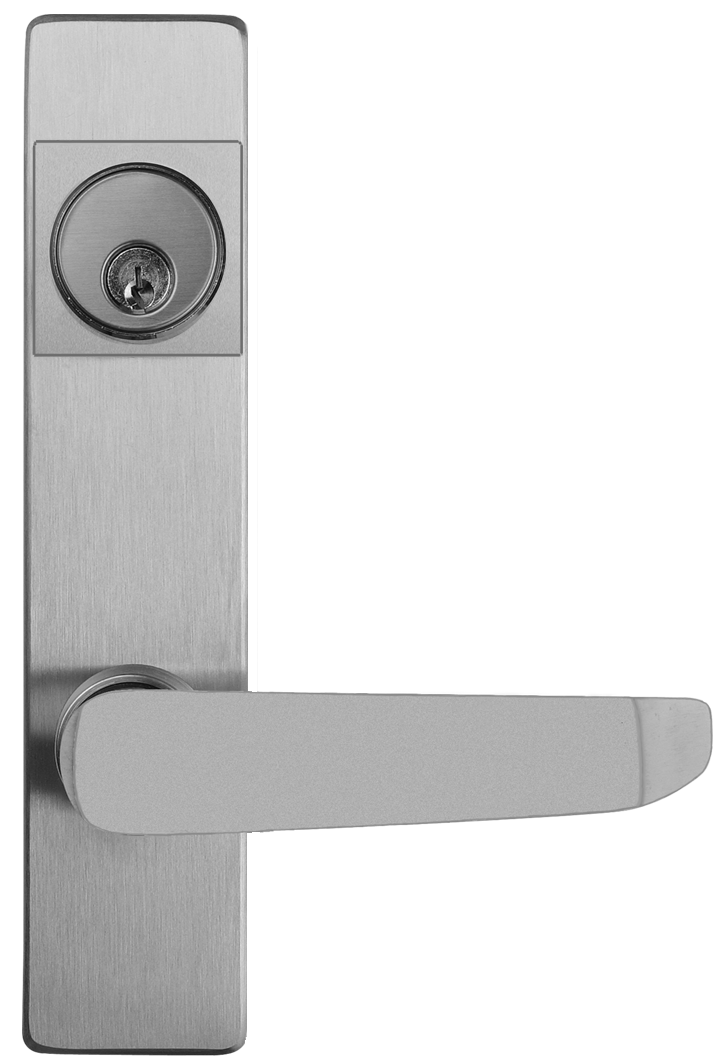

08BN | Key locks/unlocks outside lever | V40, V50 |
09BN | Lever trim active by key; locked when key removed | V40, V50 |
14BN | Outside lever always active | V40, V50 |
02D2W | Dummy lever | V40, V50 |
08D2W | Key locks/unlocks outside lever | V40, V50 |
09D2W | Lever trim active by key; locked when key removed | V40, V50 |
14D2W | Outside lever always active | V40, V50 |
Electric Unlock Trim

EU2W
Trim | Function | Device Compatibility |
---|---|---|
EU2W | Electric lock/unlock | V40, V50 |
