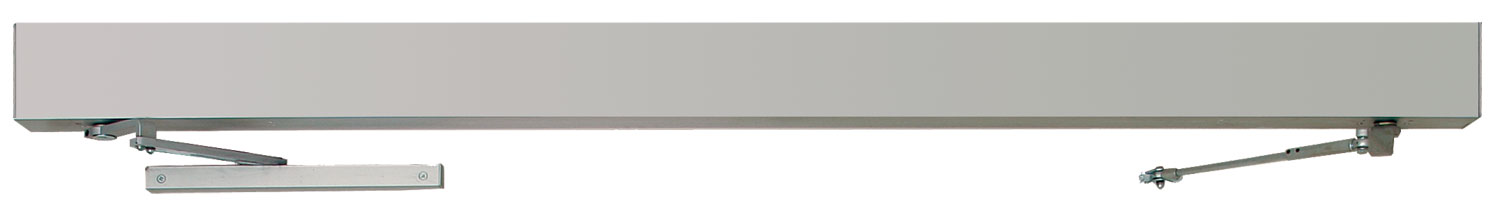

AO19-3 For Double Egress Door Applications
The AO19 Series Automatic Operator for double egress doors is an easy to install, heavy duty product for high use and high abuse low energy applications. The AO19 Series meets requirements for ANSI/BHMA A156.19 (American National Standard for Power Assist and Low Energy Power Operated Doors) and provides standard features that meet the requirements of the American Disabilities Act.
Features
- Power close applies a reverse power to aid in latch check position
- Single voltage source required to operate
- Adjustable delayed activation for sequenced vestibule doors
- Reverse on obstruction stalls a door during closing cycle and re-activates to open if an obstruction is sensed anytime before the latch position
- Push & Go activates when door is manually pushed to open
Benefits
- Economical operator provides safe and easy access in medium to high-traffic and security areas
- Hanger plate allows quick installation
- Self-contained unit in an extruded case allows easy access for maintenance and adjustments
- Works with existing access control, locking and computer signal devices
- 3-way low-voltage ON/OFF/HOLD switch for ease of service and setup
- Can be installed and adjustments made prior to electrician connecting building power
