Available with 10/40 Rim, 30 Mortise, 20/21/50/51 Surface Vertical Rod Devices and 60/61/62/63/70/71/80/81/82/83 Concealed Vertical Rod Devices

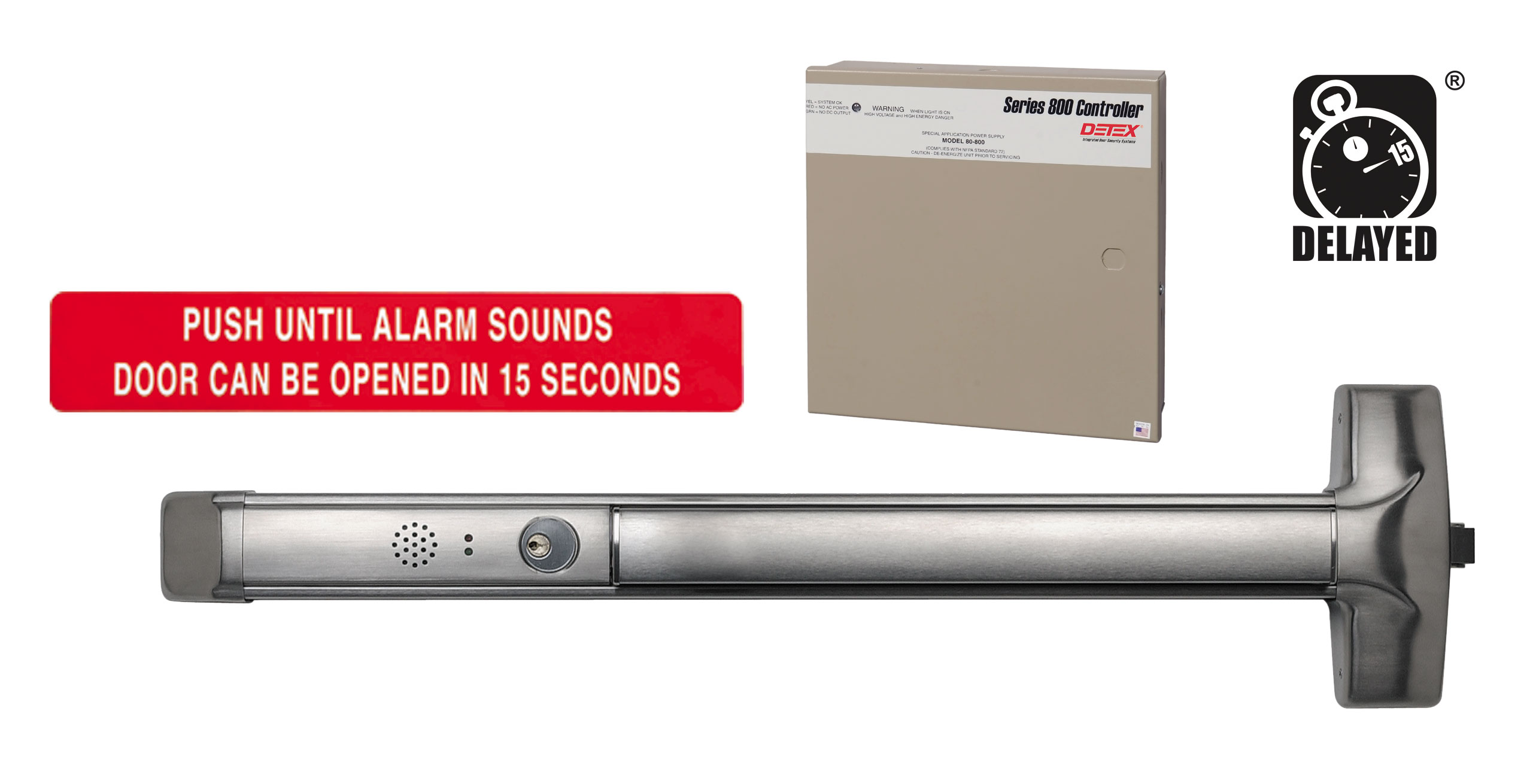

Delayed Egress (EE)
The Delayed Egress (EE) option is designed for applications that require a delayed egress, alarmed panic device. The alarm, with approximately 100 decibels will sound when someone attempts to exit, alerting management that an unauthorized exit has been attempted. The alarm will continue to sound, but the door will remain locked for 15 seconds, which deters the unauthorized exit and provides the responsible party time to respond to the alarm.
Features
- Powered by a 24VDC filtered and regulated power supply
- Panic device and power supply have passed testing for electrostatic discharge (ESD) by an independent testing laboratory
- Stainless steel, 3/4″ deadlocking Pullman-type latch bolt
- Non-handed, field sizeable
- Accommodates all types of mortise cylinders with a standard Yale cam
- Single mortise cylinder provides arming and dogging – can be factory installed
- 9V battery provides alarm function only in case of power failure
Benefits
- Secure installation prevents mistakes, enhances security and reduces maintenance
- Durable design provides years of trouble-free protection, saving on replacement costs
- Fast and easy installation saves time and money
- Controls foot traffic, deters unauthorized exits, prevents loss and meets building code requirements
