How To Install For A Pair Of Doors

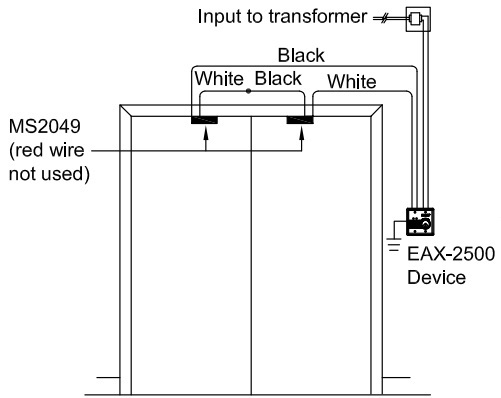

The device mounts to the wall and 2 external magnetic switches need to be used. The switches are wired in series and connected to terminals 5 & 6. See diagram below:
The device mounts to the wall and 2 external magnetic switches need to be used. The switches are wired in series and connected to terminals 5 & 6. See diagram below:
