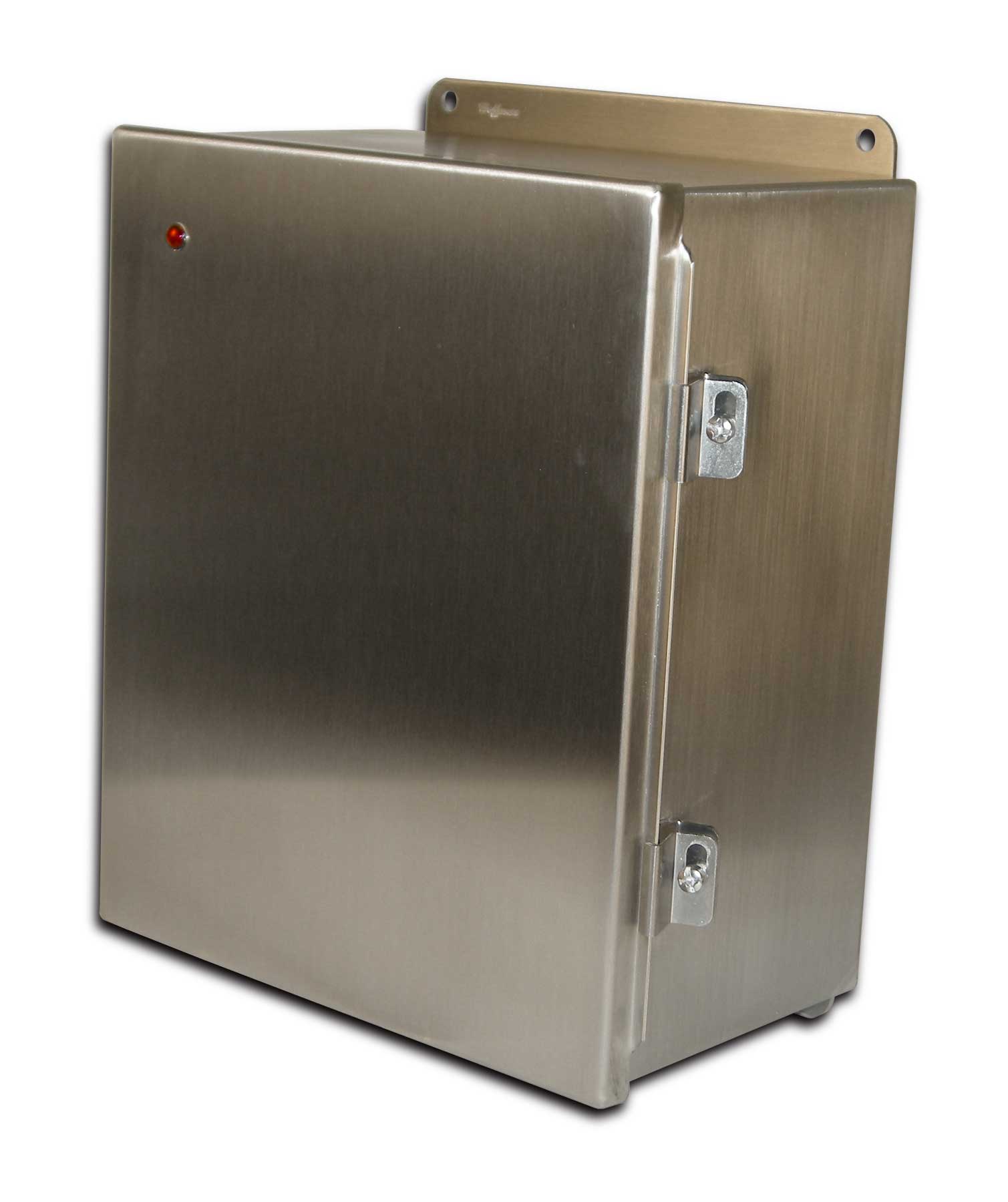

106595-1 Logic Controller / Power Supply for Use Outdoors
The Detex 106595-1 is a universal logic and power supply controllers that allow for total control over all electrified hardware. The controller receives input from a switch, access control or any dry contact device and processes it into the desired output. One controller can manage applications for up to two doors, such as standard egress, delayed egress and interlocks. All connections for local or remote signaling are contained in one box. The 106595-1 logic controllers provide at least 2A of DC power at the door. A battery backup/charging circuit is standard with each controller to deliver an uninterrupted source of power for up to 4 hours (battery sold separately). Enclosure is NEMA 4X rated.
Features
- Power supply and controller all in one NEMA 4X box
- Controls up to 2 separate doors for standard egress or 2-door interlock applications
- Relays may be configured to wet or dry connections
- Connections labeled with either numbering scheme or label with text to identify circuits
- Dual voltage selection (12/24VDC)
- 9VDC, 100mA output terminal tap
Benefits
- Central terminal connections provide easy wiring
- Designed specifically to support electric locks, access control systems, and delayed egress systems
- Multiple fire alarm relay input options assure compliance to various life safety codes
- NEMA 4X rating provides protection against rain, sleet, snow and corrosion
