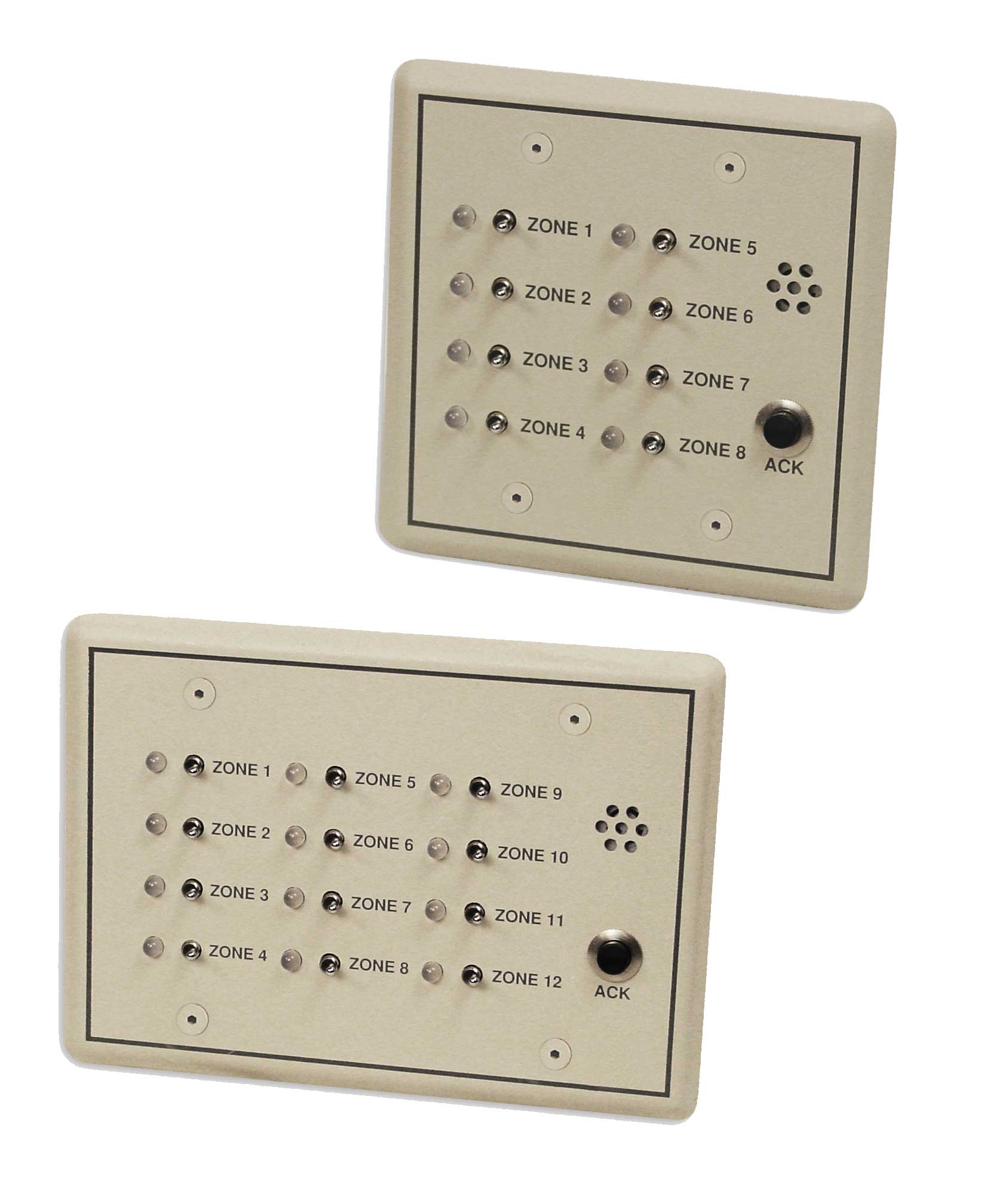

8 & 12 Zone Annunciators
DSI Part Number: ES600
Detex Corporation is pleased to offer the proven, innovative RP-600 (ES600) door management products from DSI By Detex. Providing an efficient means of displaying the condition of security devices throughout a monitored facility, a Multi-Zone Annunciator serves to provide visual and audible indications of alarms as they occur, giving security personnel the ability to monitor a large complex from a single location.
Features
- Available in 8 zone or 12 zone
- Zone shunt allows user to bypass any selected zone
- Offers standard or optional controls
- Pushbutton reset
- Latch control assures point of alarm is reset
- Utilizes standard 2- or 4-gang deep electrical mounting boxes
- Bi-colored LEDs easily identify status
- 12VDC
Benefits
- State-of-the-art monitoring in compact package
- Electronics organized into modules for wide range capabilities
- Provides visual and audible indications allowing monitoring of a large complex from a single location
Installation Instructions
Technical Notes
ES610 Wiring Diagram
ES611 Wiring Diagram
ES612 Wiring Diagram
ES613 Wiring Diagram
ES614 Wiring Diagram
ES615 Wiring Diagram
ES620 Wiring Diagram
ES621 Wiring Diagram
ES622 Wiring Diagram
ES623 Wiring Diagram
ES624 Wiring Diagram
ES625 Wiring Diagram
ES630 Wiring Diagram
ES631 Wiring Diagram
ES632 Wiring Diagram
ES633 Wiring Diagram
ES634 Wiring Diagram
ES635 Wiring Diagram
