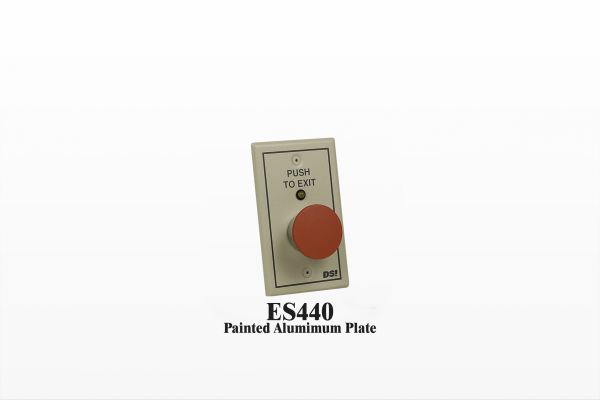

ES440
Push Button Controls
The ES440 series consist of button control devices for use in access control applications such as emergency exits, lock release, and request to exit applications.
These units are complementary to most access control systems and may be used as a stand-alone device. “PUSH TO EXIT”, “HANDICAP”, and “EMERGENCY” screened face plates as well as custom text printing is available.
Features
- Easy to install
- Custom silk-screening available

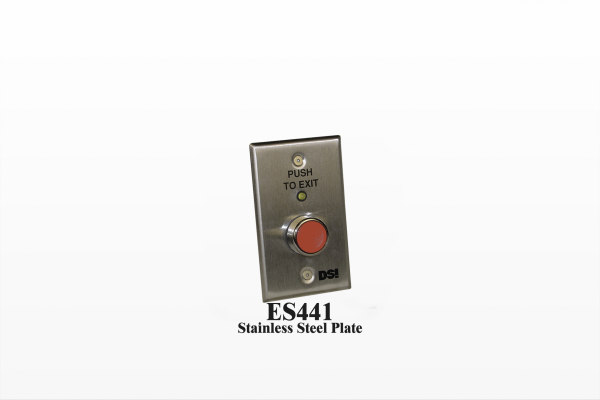

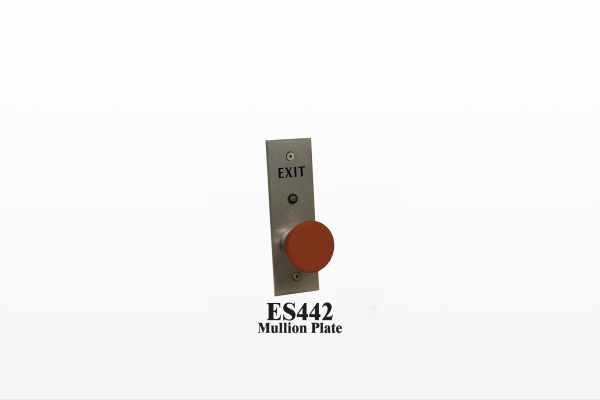

- Single gang or mullion mount
- Made in the USA
Installation Instructions
Pneumatic Timer Installation Instructions
ES440-B1-C1 Wiring Diagram
ES440-B2-C1 Wiring Diagram
ES440-B3-C1 Wiring Diagram
ES441-B1-C1 Wiring Diagram
ES441-B2-C1 Wiring Diagram
ES441-B3-C1 Wiring Diagram
ES441-B1-C10 Wiring Diagram
ES441-B2-C10 Wiring Diagram
ES441-B3-C10 Wiring Diagram
